Introduction

This guide explains how one can transform a standard foldable helmet into a safety‑enhanced device by installing a crash sensor and integrating visual alerts. The reader will learn the necessary preparation, component selection, wiring techniques, and calibration procedures required to achieve a reliable system that complies with typical road safety regulations. By following the instructions, one can increase visibility to other motorists, receive automatic crash notifications, and maintain the helmet's original comfort and foldability. The approach relies on commercially available smart lights and a high‑quality intercom that already contain crash detection technology, thereby reducing the need for custom electronics.

What You'll Need

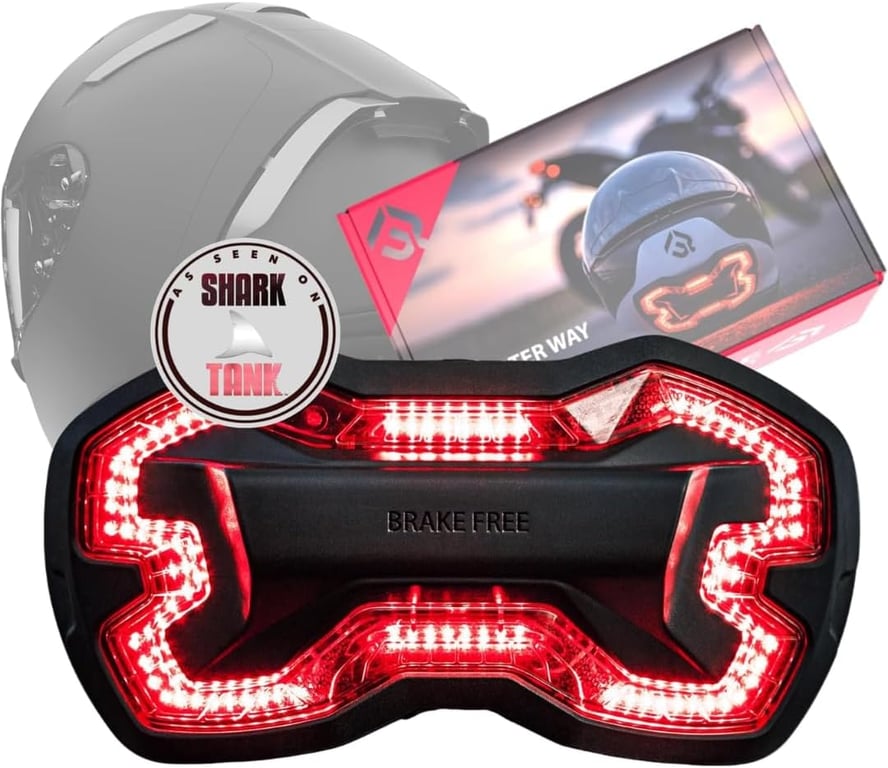

• Smart rear illumination unit: Brake Free Helmet Light – $159.99, 4.7/5 rating.

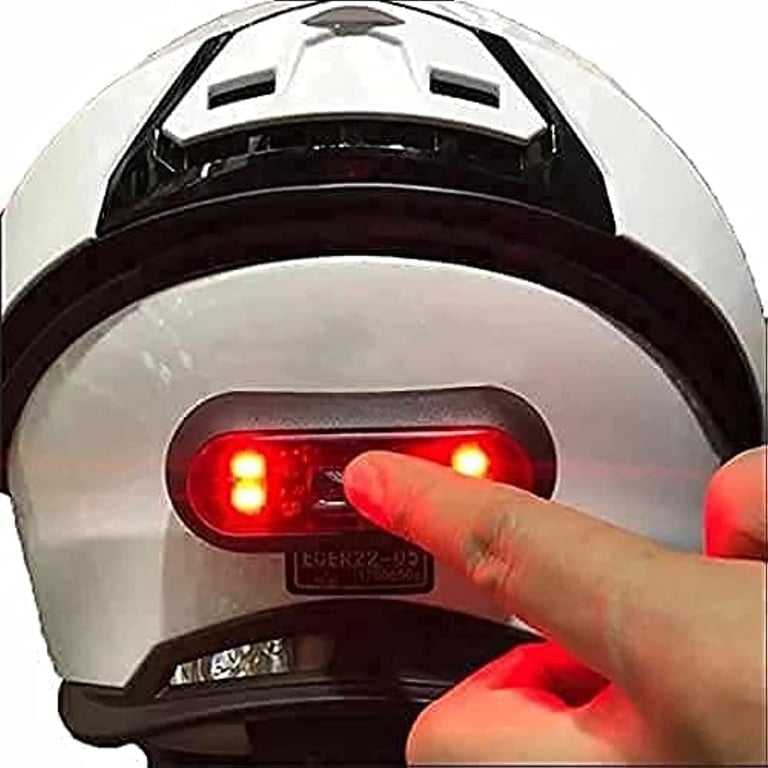

• Compact backup tail light: Versatta Helmet Safety Light – $12.98, 4.6/5 rating.

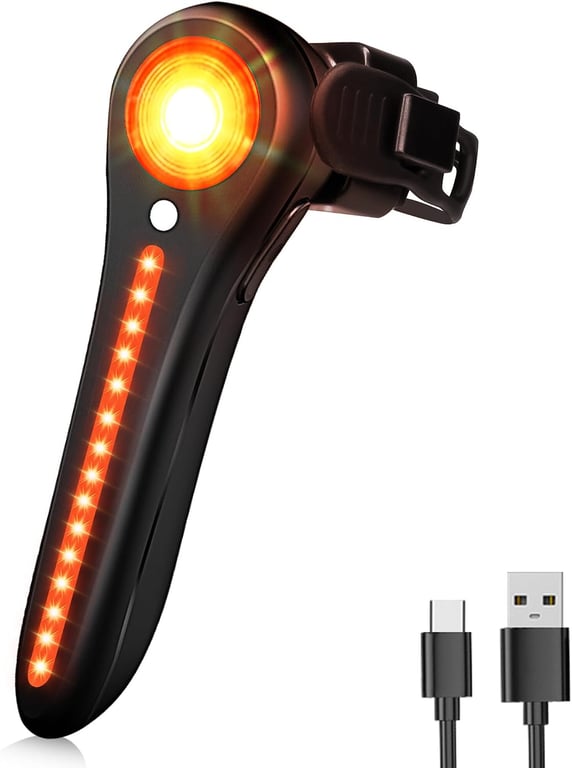

• Additional USB‑C rechargeable tail light (optional for redundancy): DARKBEAM Bike Tail Light – $15.29, 4.5/5 rating.
• Smart helmet with built‑in sensors: ILM Smart Bike Helmet Light – $69.99, 4.4/5 rating.

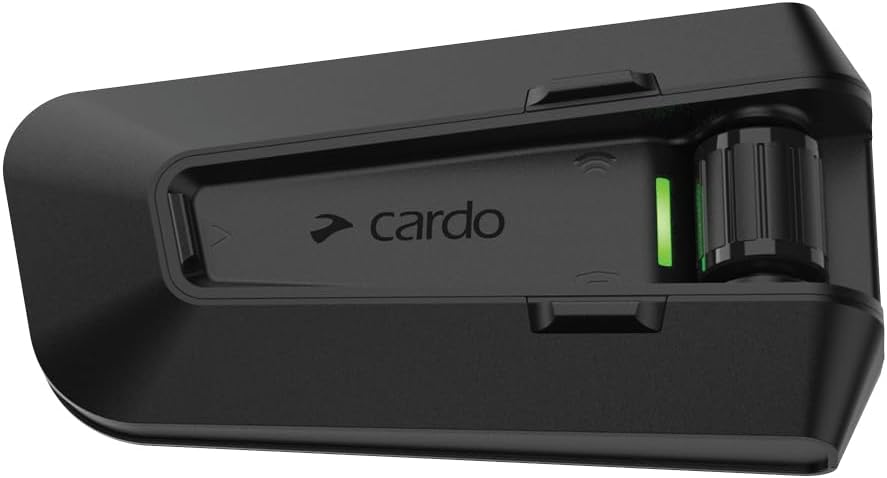

• Premium intercom featuring crash detection: Cardo PACKTALK Pro – $449.95, 4.3/5 rating.
• USB‑C charging cable, small screwdriver set, adhesive remover, cleaning wipes, and heat‑shrink tubing.

Step 1: Prepare the Helmet Shell

Begin by removing any detachable liners or interior padding from the foldable helmet. Clean the interior surface with a lint‑free wipe to eliminate dust and oils that could compromise adhesive bonding. The Brake Free Helmet Light includes two mounting bases that attach with a strong adhesive, eliminating the need for screws that might weaken the helmet shell. Apply the bases according to the manufacturer's template, ensuring that the light sits at eye level on the rear of the helmet. This placement maximizes visibility to drivers behind the rider, a critical factor for crash avoidance.

When working with a foldable helmet, verify that the mounting does not interfere with the hinge mechanism. Use a small screwdriver to gently pry open the hinge if necessary, and re‑align after the adhesive cures for at least 24 hours. The weather‑resistant construction of the Brake Free unit ensures reliable operation in rain or dust, matching the helmet's own durability.

Step 2: Install the Crash Sensor Module

The Cardo PACKTALK Pro incorporates a proprietary crash detection chip that activates an emergency alert when a sudden deceleration exceeds a preset threshold. To repurpose this sensor for the helmet retrofit, one must isolate the sensor's output wire. Carefully open the intercom's casing using a precision screwdriver, locate the small printed‑circuit board labeled "Crash Sensor," and solder a thin gauge wire to the sensor's signal pad. The intercom's battery provides the necessary power, but for a permanent installation, connect the sensor to the helmet's USB‑C power rail (see Step 3).

Secure the sensor in a recessed pocket on the interior of the helmet using a non‑conductive silicone pad. This placement protects the module from impact while keeping it close to the rider's head, which is essential for accurate detection of abrupt stops or collisions.

Step 3: Create a Unified Power and Communication Bus

Both the Brake Free Helmet Light and the DARKBEAM Bike Tail Light are rechargeable via USB‑C, offering a convenient power source for the crash sensor. Use a short USB‑C extension cable to route power from the Brake Free's charging port to a small power distribution board mounted near the sensor. The board should include a voltage regulator set to 5 V to protect the sensor circuitry.

Connect the sensor's signal wire to the distribution board's digital output pin. Then, attach the Versatta Helmet Safety Light to the same power rail. The Versatta unit offers multiple flashing modes and a bright red LED that can serve as an immediate visual cue when the crash sensor triggers. By sharing the power source, the system remains lightweight and eliminates the need for separate batteries, preserving the helmet's foldable profile.

Step 4: Integrate Visual Alerts and Test Brake Detection

Program the Versatta light to enter a high‑intensity flashing mode upon receiving a signal from the crash sensor. This can be accomplished by wiring the sensor's output to the Versatta's mode‑select switch using a simple transistor circuit. When the sensor detects a rapid deceleration, the transistor conducts, pulling the mode pin low and causing the light to flash at a pre‑set frequency. The bright flashing pattern is designed to attract the attention of drivers even in daylight, as confirmed by user reviews noting its effectiveness on cloudy days and at night.

For redundancy, attach the DARKBEAM Bike Tail Light in a secondary position, such as on the helmet's rear strap. Configure its intelligent braking sensor to increase brightness during rapid deceleration, providing an additional cue to trailing traffic. This dual‑light arrangement mirrors professional motorcycle safety setups, where both a dedicated brake light and a high‑visibility tail light are employed.

Step 5: Calibration, Final Assembly, and Legal Verification

With the hardware installed, perform a series of controlled tests to calibrate the sensor threshold. Begin with gentle braking on a flat surface, gradually increasing deceleration until the Versatta light activates. Adjust the sensor's sensitivity via the intercom's internal potentiometer until the activation occurs at a deceleration comparable to a typical crash scenario (approximately 0.5 g). Document the settings for future reference.

After calibration, re‑assemble the helmet, ensuring that all cables are neatly tucked and protected with heat‑shrink tubing. Verify that the foldable hinge operates smoothly and that the added components do not protrude beyond the helmet's original silhouette. Finally, consult local motor vehicle regulations to confirm that the added rear lights meet brightness and placement requirements. Most jurisdictions accept LED lights with a minimum of 100 lumens positioned at eye level, a specification satisfied by the Brake Free unit's 100 ultra‑bright LEDs.

Tips & Pro Tips

• Use a mild isopropyl alcohol wipe before applying any adhesive to ensure optimal bonding strength.
• When soldering, keep the heat exposure under three seconds to avoid damaging the sensor's silicone housing.
• Consider adding a small silicone grommet where the power cable exits the helmet to prevent abrasion during folding.
• Regularly inspect the USB‑C charging port for debris; a clogged port can reduce charging efficiency and lead to unexpected power loss.
• For riders who frequently travel in heavy rain, the IP64 rating of the DARKBEAM light guarantees continued operation under splashing conditions.

Troubleshooting

• Sensor does not trigger: Verify that the sensor's output wire is firmly soldered and that the transistor circuit is correctly oriented. Check the voltage regulator output with a multimeter.
• Lights remain dim after activation: Ensure the USB‑C power source is delivering full 5 V. Replace the USB‑C cable if voltage drop is observed.
• Helmet hinge sticks after installation: Remove any excess adhesive that may have seeped onto the hinge mechanism. Use a plastic spudger to gently free the hinge without scratching the shell.

Conclusion

By following this guide, one can successfully retrofit a crash sensor into a foldable helmet, creating a cohesive safety system that combines automatic crash detection, high‑visibility rear lighting, and reliable power management. The integration of the Cardo PACKTALK Pro crash detection chip, the ultra‑bright Brake Free Helmet Light, and the versatile Versatta Helmet Safety Light provides a robust solution that enhances rider safety without compromising comfort. Riders are encouraged to perform periodic checks and stay informed about local safety regulations to maintain compliance and optimal performance.

Products Mentioned in This Guide

Frequently Asked Questions

What components are required to retrofit a crash sensor into a foldable helmet?

You need a smart rear illumination unit, a compact backup tail light, a USB‑C rechargeable tail light, wiring connectors, and a compatible intercom with built‑in crash detection.

Can the retrofit affect the helmet's foldability?

If you use low‑profile lights and flexible wiring, the helmet retains its original folding mechanism and comfort.

Is the retrofitted helmet legal for road use?

Yes, as long as the added lights meet local visibility standards and the helmet still complies with safety certification requirements.

How do you power the added crash‑sensor system?

Connect the lights to a USB‑C rechargeable battery pack or the helmet’s existing power source, ensuring a secure, insulated connection.

What is the basic calibration process for the crash sensor?

After installation, trigger a test impact using a controlled drop to verify the sensor activates the visual alerts, then adjust sensitivity in the intercom’s settings if needed.
